J2 Series
  • File Download( KB)
  • Item No.:
    J2 Series
    Product Name:
    Cabinet Rack Series
    Description:
    J2 Series is a rock solid server rack cabinet frame that offers 4 Post Vendor Neutral Mounting Rails adjustable to accommodate servers up to 36" deep. Also included are 2- Auxiliary Vertical Rails (required for optional shelf mounting). The heavy-duty steel construction of this server rack is made to support heavy servers and peripherals. Our unique cable trunk provides efficient vertical cable routing that is neatly secured with our Quick Release Cable Latches. Optional shelves, keyboard turntable and vertical power strip are also available.

    The J2 Server Cabinet and netwok rack series includes a grounding/bonding stud in the base of rack which facilitates proper grounding and bonding of electronic equipment, as per NEBS and NEC standards.

    The server cabinet rail brackets are pre-punched for built-in cable management. Multiple lacing points and slotted rail brackets add cable management convenience. The J2 server cabinet/NETWORK RACK has removable rear plates which allow cable bundles to be easily passed over or under the J2's standard key-locking rear door.

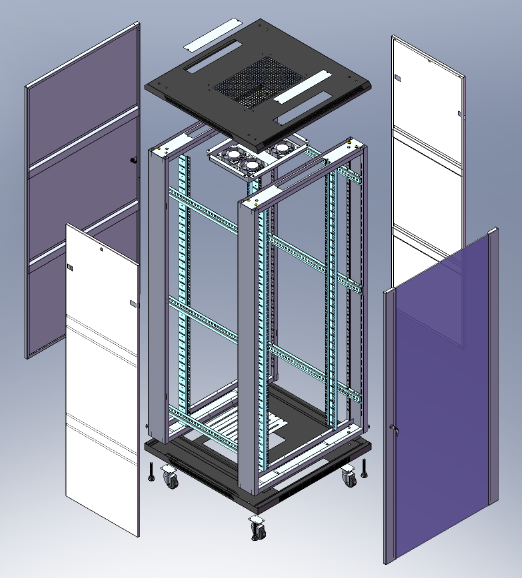

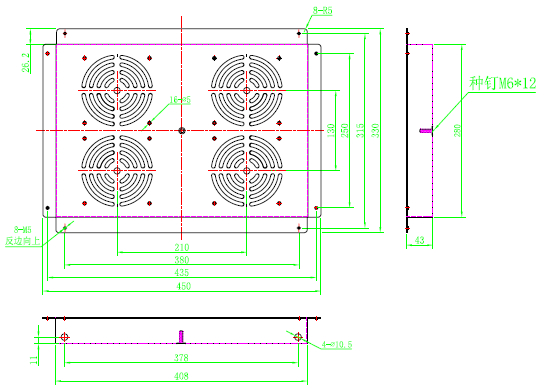

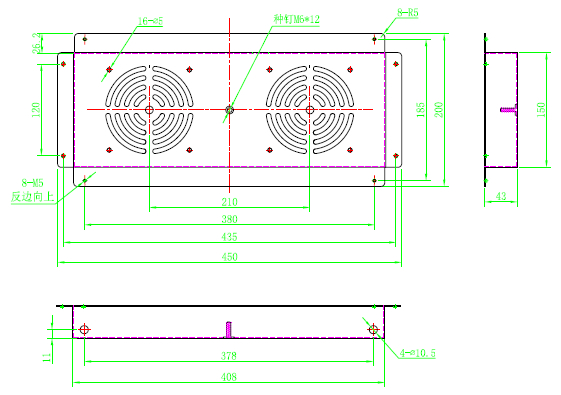

    This server cabinet is modular in design and you choose from three types of front doors, multiple rack rails, different fan tops, etc.

    The J2 Series is a lighter weight, economy server cabinet and not suitable for all applications.

    Network/Server Rack
    Mat. : Steel
    Features:
    ●Steel Frame
    ●Vented front door and rear door accelerate the convection inside enclosure
    ●Smoked Plexiglas front door, color is optional
    ●Removable side panels
    ●Leveling feet or castors, Max. Static load 800Kg, Max. Dynamic load 350Kg

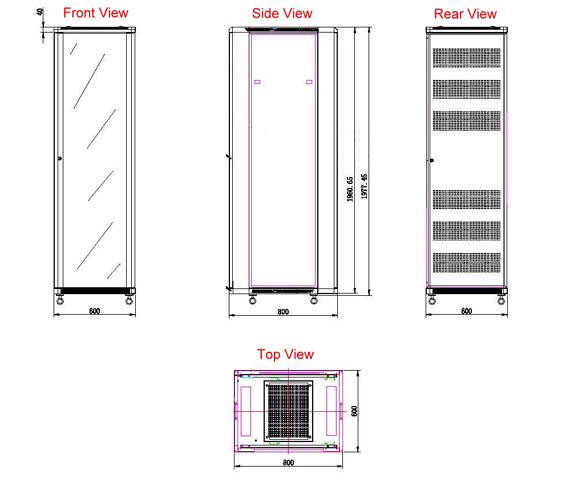

    Dimension:
    Standard Size
    Order Code
    Capacity
    Width
    Depth

    J26641

    J26841

    41U
    600
    600
    600
    800

    J26636

    36U
    600
    600
    J26631
    31U
    600
    600
    J26621
    J26821
    21U
    600
    600
    600
    800
    H1 W/O Caster High( 85mm) , 1U= 1.75 Inch= 44.45mm
    Images:
